Stay adjusters (often called "shroud plates" or "vernier adjusters") are the primary way to control mast rake and rig tension in a dinghy. Because dinghies lack the massive turnbuckles found on yachts, they rely on these simple, lightweight stainless steel channels to provide incremental tuning.
1. Types of Stay Adjusters
Choosing the right adjuster depends on how often you need to change your settings (e.g., between races or while on the water).
| Type | Best For... | Advantage |
|---|---|---|
| Pinhole (Channel) Adjuster | Most common for general racing. | Simple, indestructible, and low profile. |
| Vernier Adjuster | High-performance tuning (420s, 470s, Snipes). | Off-set hole patterns allow for "micro-adjustments." |
| Screw-Adjuster | Boats with high tension requirements. | Allows for adjustment under load, similar to a mini-turnbuckle. |
| High-Speed Adjuster | Boats that change rake during a race. | Often uses a lever or a wire-to-block system. |
2. The Mechanics of Tuning
Vernier vs. Standard Pinhole
- Standard Adjusters: The holes are spaced evenly (usually 10mm or 15mm apart). If you move the pin one hole, the mast moves significantly.

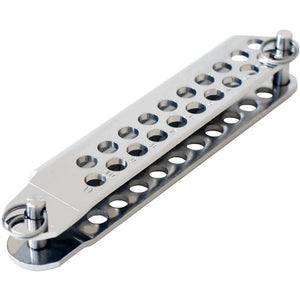

- Vernier Adjusters: These feature two sets of holes that are slightly "off-step." By picking a specific combination of the inner and outer holes, you can adjust your stay length by as little as 2mm to 4mm. This is essential for serious racers who need to hit exact rig-tension numbers.
The Wire-to-Adjuster Connection
The shroud (or forestay) usually ends in a swage eye or a T-terminal. This is secured to the adjuster using a Clevis Pin.
- Tip: Always use "Fast-Pins" (pins with a spring-loaded ball) if you change settings frequently. If you use standard clevis pins, ensure the split pins or "R-clips" are taped over to prevent them from tearing your sails or your wetsuit.
3. Essential Sizing Factors
Pin Diameter
The most common pin sizes for dinghy stay adjusters are 5mm (3/16") and 6mm (1/4").
- The Rule: Match the pin size exactly to your shroud terminals and the chainplates on your hull. A 5mm pin in a 6mm hole will vibrate and eventually "oval" the hole, weakening the fitting.
Channel Width
Ensure the internal width of the adjuster is wide enough to fit your shroud terminal eye. Common widths are 8mm to 12mm. If it's too tight, the stay cannot pivot, leading to metal fatigue in the wire.
Length of Adjustment
For boats like the Wayfarer or GP14, you may need a "Long" adjuster (15 holes+) to allow for a wide range of mast rake settings between light and heavy wind. For a Laser/ILCA, stay adjusters aren't used on the shrouds, but a forestay adjuster may be used for storage.
4. Safety and Maintenance

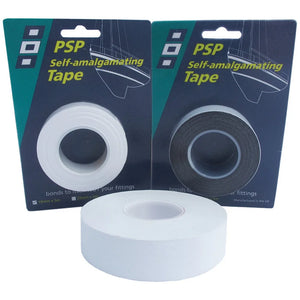

- Tape Everything: Stay adjusters are notorious for having sharp edges. Use self-amalgamating tape or "rigging tape" to cover the pins and the top of the adjuster. This prevents the jib sheets from snagging during a tack.
- Check for "Banana-ing": If a boat has been over-tensioned, the stainless steel channel of the adjuster can bow or bend (look like a banana). If you see any curvature in the metal, replace it immediately; a failure here means losing the mast.
- Salt Prevention: Since adjusters are located right at the deck level, they are constantly soaked. Rinse them with fresh water to prevent "tea-staining" (surface rust), and check that the pins haven't become "welded" into the holes by salt.
5. Pro-Tip: Calibration

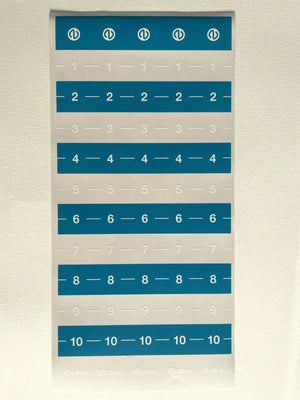

Once you find the "perfect" rig setting for a medium breeze, mark the hole on the adjuster with a permanent marker or a small dab of paint. This allows you to return to a known "base setting" quickly when you are on the water and the wind changes. Also you can use calibration stickers, which are self-adhesive and can be applied to deck or spars.
